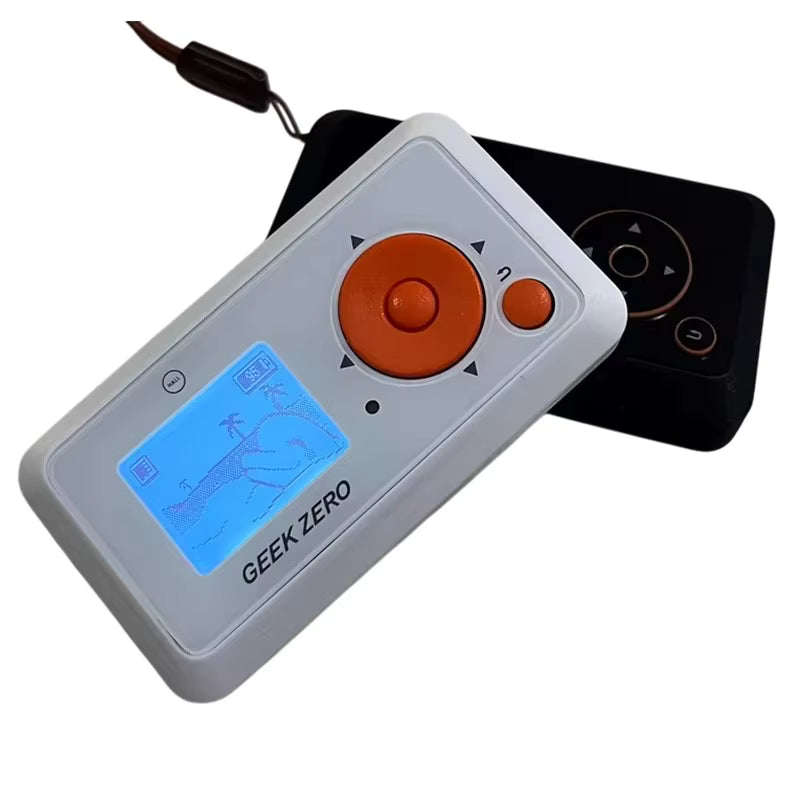

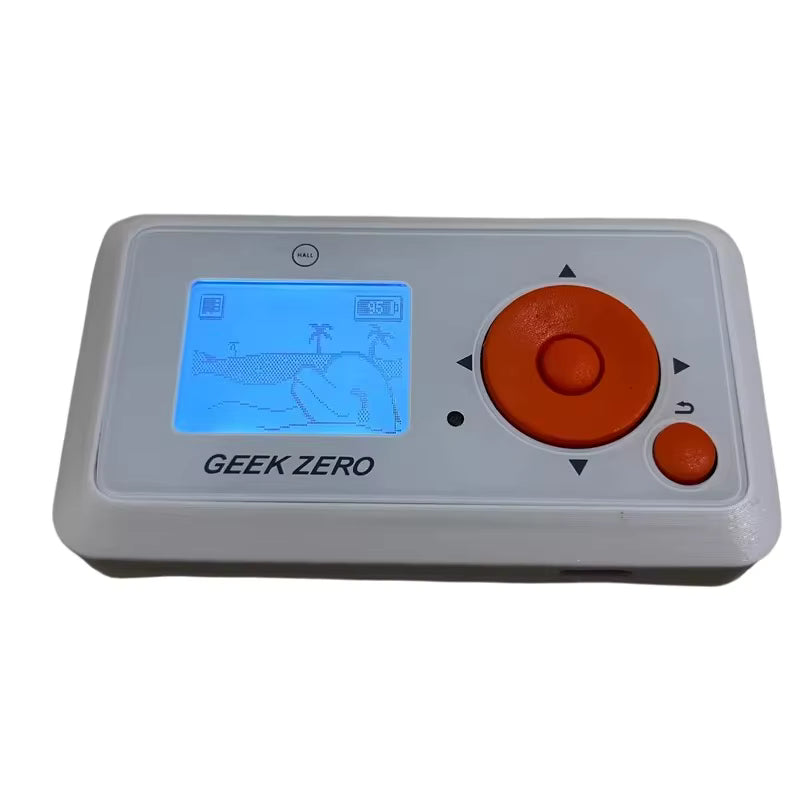

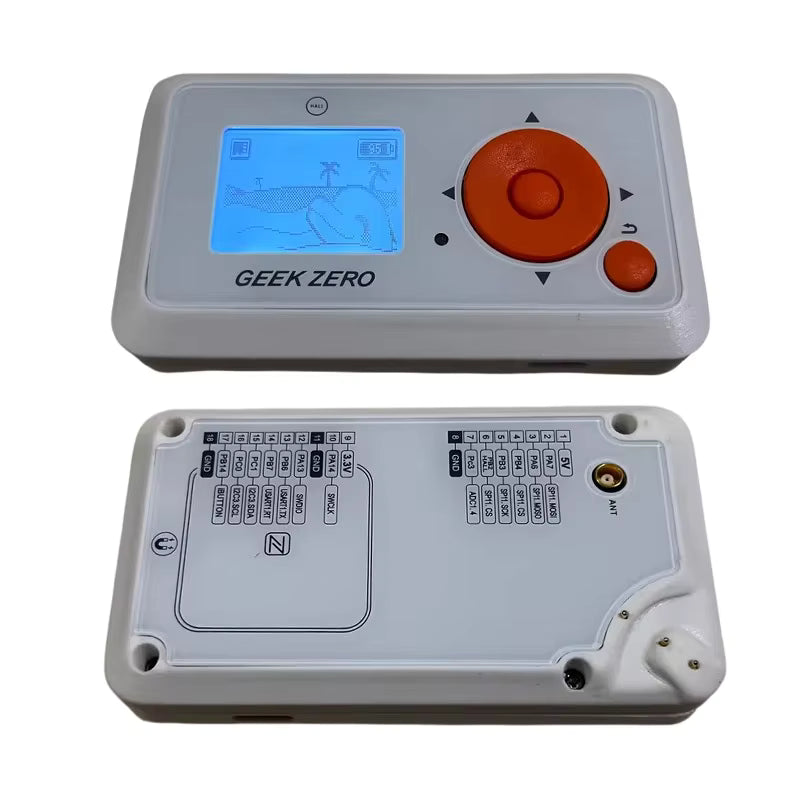

GeekZero - Upgraded Clipper with Momentum System | MCX Antenna Interface | BM160 Air-Mouse | Hall Sensor

Flipper Improved Version (GeekZero)

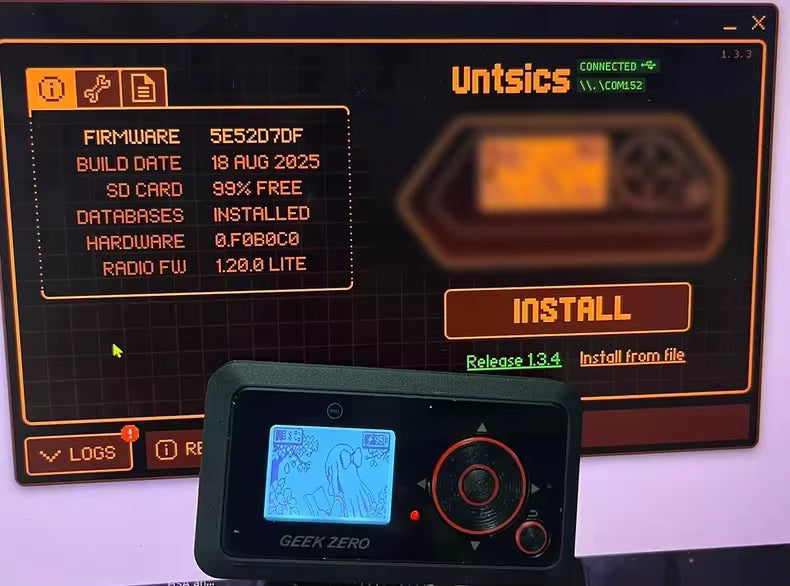

Use the momentum system!

Designed with Flipper as the prototype reference, 100% compatible with the FlipperZero hardware ecosystem. And the upgrade has added the following features:

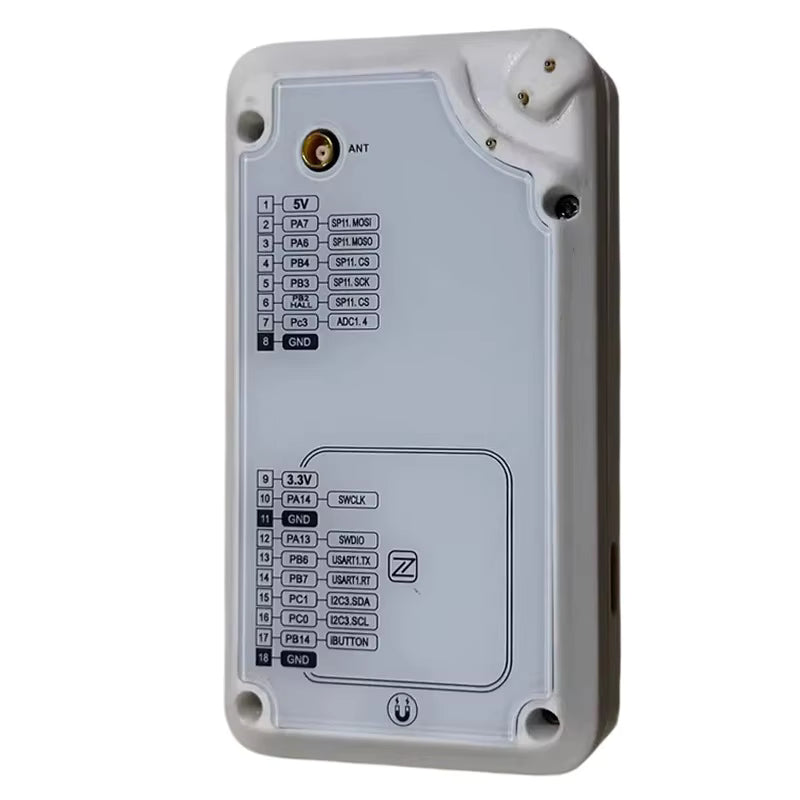

1. Optimized the Subhz design and added external antenna terminals. The external antenna uses MCX interface. (433MHz signal strength 8d B m)

2. The circuit focuses on frequency signals around 433MHz, with a transmission power of up to -10dBm. (Other frequencies can also be used, but the power may be slightly weaker.) The original 433MHz signal strength is only -30dB.

3. The built-in BM160 chip has been added, which can simulate the functions of an aerial mouse.

4. Added built-in Hall sensor.

5. Added built-in magnets to serve as signal triggers for other devices.

Each unit comes pre-loaded with a 32GB SD card, providing ample storage for apps and data. Hardware

functions remain consistent with the original Flipper Zero, and most software applications are fully compatible.

Note: If the key is not written (only once), the U2F function cannot be used, and it is almost the same as the original version. (This feature can be restored by writing a key.)
